The dew point is the temperature at which the moisture in the air becomes saturated and begins to condense. The ambient or process temperature of 100%RH is the dew point temperature. The lower the dew point temperature relative to the ambient temperature, the less likely it is that the gas dryer or gas pipeline will have condensation. In addition, the dew point temperature does not change with the gas temperature. In metal handling, plastic drying and compressed air systems, dew point has become a standard measurement parameter.

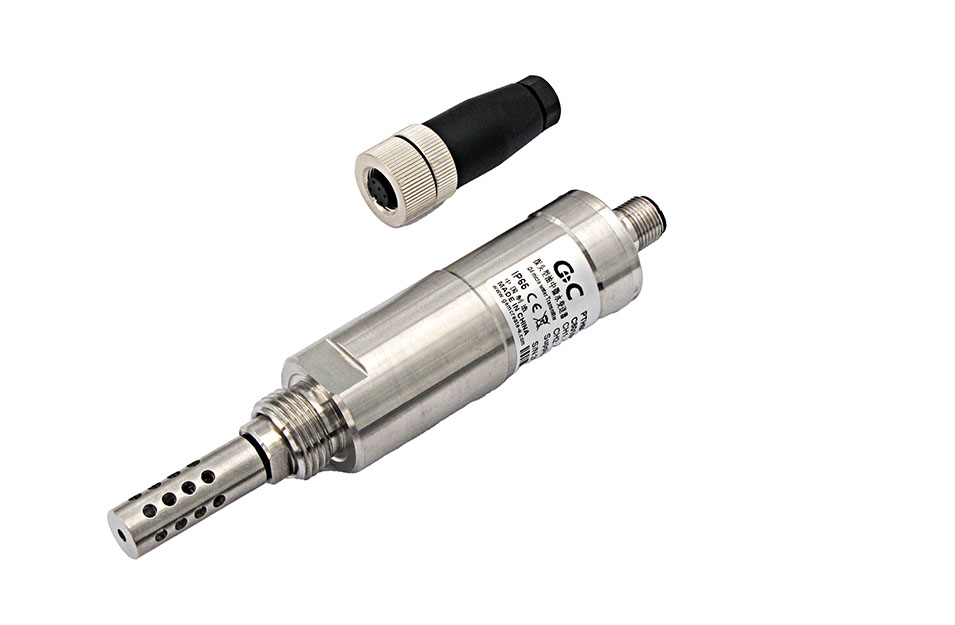

The PTH80 adopts the high molecular film humidity-sensitive capacitor imported from Europe, and special coating technology is used on the surface of the sensor, which is perfectly combined with a high-performance microprocessor, resulting in higher accuracy and better chemical resistance. The PTH80 is available with an optional stainless steel pore filter for extremely fast response times, and can withstand the erosion of moist gas; It is not contaminated by particulates, oil gas or most chemicals, and is not sensitive to sample gas flow rates.
Technical Features
Output signal: 4 ... 20mA or RS485
Filter: pore filter, stainless steel sintered filter
Shell material: 316 stainless steel
Temperature range: -40 ... 80℃
Automatic calibration and heating function
Dew point measurement range: -60 ... +60℃
Typical Applications
Electric power SF6 insulating gas dryness monitoring
Battery process gas dryness monitoring
Technical Data
Input and output
|
Operating voltage |
24V DC ±20% |
|
Current output |
4 ... 20mA RL < 500 Ohm |
|
Power consumption |
<30mA (current output) |
|
Channel precise: ±0.2%FS |
|
|
|
<15mA (digital output) |
Digital output |
RS485 (Modbus RTU) |
Measurement Parameter
|
Dew point (frost point) |
|
|
|
|
|
Measurement range |
-60 ... +60 ℃ Tdf |
|
|
|
|
Measurement precise |
±2 ℃ Tdf |
|
|
|
|
Calibration error |
±0.5℃ Tdf |
|
|
|
|
τ63 response time |
10mins (in still oil) |
|
|
|
|
Humiditiy sensitive element |
High molecular polymer humidity-sensitive capacitor |
|
|
|
The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.
Technical Specification
|
Wiring connection |
The maximum cable diameter of the terminal is 1.0mm2 |
|
Operating temperature |
Circuit: -20 ... 60℃ |
|
Shell material |
316 stainless steel |
|
|
Probe: -40 ... 80℃ |
|
Cable connector |
5 core threaded joint |
|
Storage temperature |
-20 ... 60℃ |
|
Probe protection |
Stainless steel pore filter |
|
Electromagnetic compatibility |
EN61326-1 EN61326-2-3 |
|
Protection grade |
IP65 |
|
|
|
